| Tên thương hiệu: | WANSHIDA |
| Số mô hình: | Q43L-5000 |
| MOQ: | 1 bộ |
| giá bán: | negotiable |
| Thời gian giao hàng: | 50 ngày |
| Điều khoản thanh toán: | T/T, L/C, Western Union |

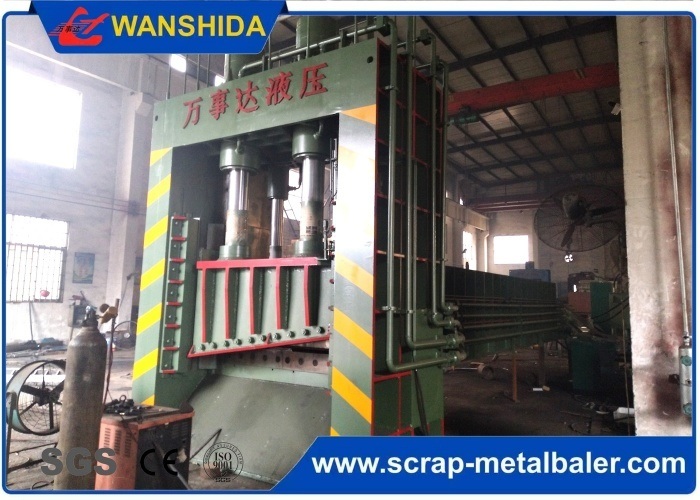

The Q43L-6300 hydraulic gantry shear is designed for industrial scrap cutting applications requiring stable hydraulic performance and automated operation. This hydraulic gantry shear integrates a PLC system, multi-cylinder compression, and high-pressure hydraulic drive to deliver consistent cutting results.
With a system pressure up to 25 MPa and multi-pump configuration, it ensures efficient energy transfer and stable output.
| Item | Specification |
|---|---|
| Model | Q43L-6300 |
| Cutting Force | 640 Ton |
| Hydraulic Pressure | 20–25 MPa |
| Motor Power | 154 kW |
| Loading Chamber | 7000 × 1800 × 900 mm |
| Blade Length | 1800 mm |
| Cutting Length | 200–600 mm |
| Frequency | 2–3 cuts/min |
| Pump Pressure | 31.5 MPa |
| Operation | PLC Automatic |
| Weight | 62 Ton |
Q1: What control system is used?
A: The machine uses a PLC automatic control system.
Q2: What is the working pressure range?
A: The system operates between 20–25 MPa.
Q3: Is customization available?
A: Yes, feeding system, control mode, and layout can be customized.
